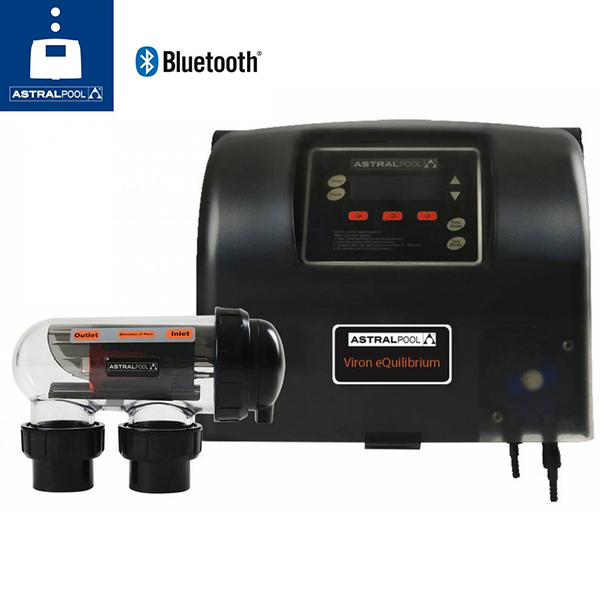

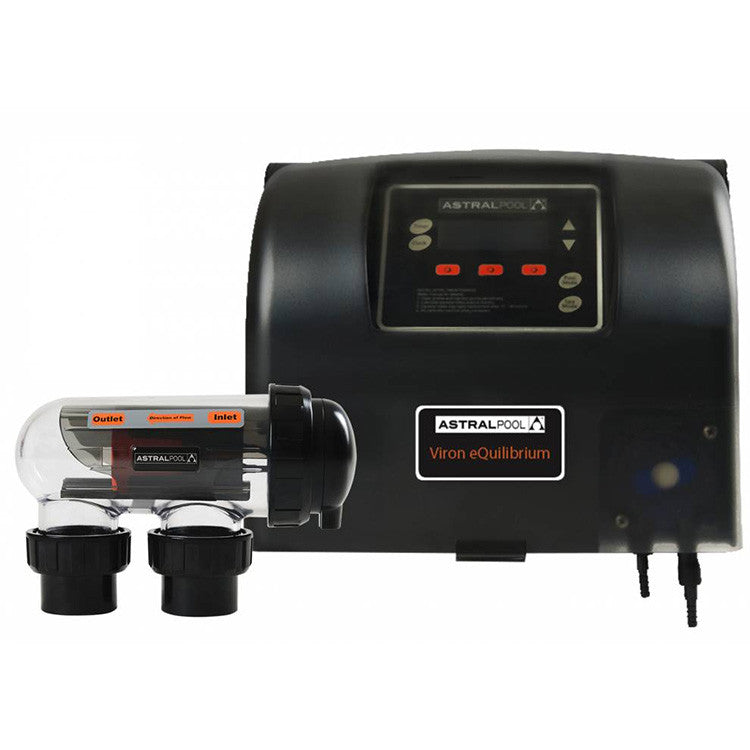

Viron eQuilibrium Chlorinator

The Viron eQuilibrium Chlorinator provides a range of options to minimise or eliminate the change in water balance. These options dramatically reduce manual water testing, maintenance, or corrective actions required for your pool water. The Viron eQuilibrium Chlorinator can even test, monitor, and maintain the perfect level sanitiser and pH balance to keep your pool safe, healthy, and looking great.



The Viron eQuilibrium Chlorinator is suitable for salt and minerals.

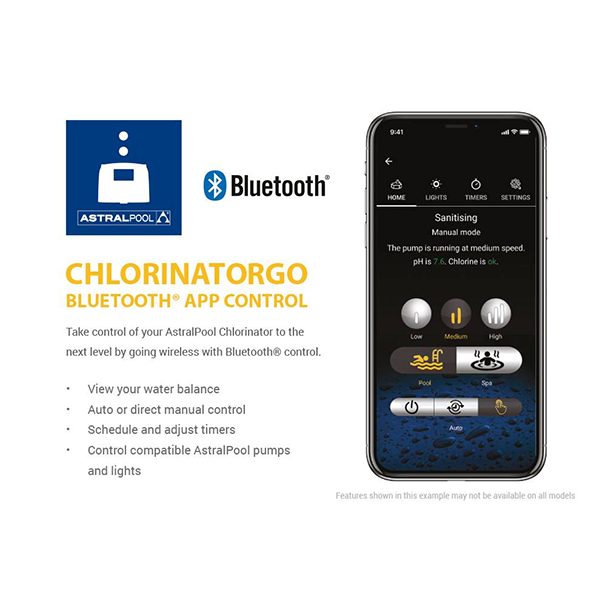

Bluetooth APP Control which allows:-

• View your water balance
• Auto or direct manual control
• Schedule and adjust timers
• Control compatible Astral Pool pumps (i.e., speed of pump) and compatible lights (up to 4 lights)

Model Versions and Options

The EQuilibrium Salt Chlorinator is available in 3 different versions and 4 different sizes.

1. Semi-Automatic pH Control - intelligent software adjusts the dose rate of acid depending upon electrode output.

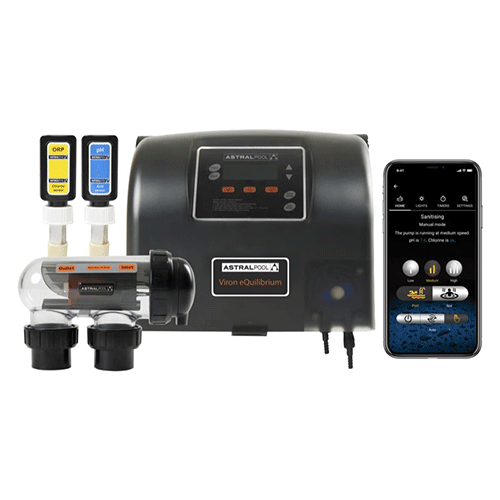

2. With pH Sensor Kit - a probe in the pool pipe tests the pH and adds acid as required.

3. Chlorine Sensor Kit - automatically controls the chlorine level in the pool. If the Viron eQuilibrium salt chlorinator is used in conjunction with a Viron Pool Pump; pool owners can set the system to run in intelligent Ai mode.

In Ai Mode, the chlorinator will check the water chemistry and automatically adjust the pump speed to ensure perfect water chemistry. Once there has been a complete turnover of the pool water and the chemistry is correct, the pump will return to an energy-efficient level.

For more details, please visit Astral Pool eQuilibrium Chlorinator Page.

Advice

We can help if you are looking to replace your Chlorinator or looking for a new Chlorination solution. Our team will help meet your expectations and provide you with the best advice. Please call us on 02 9137 8914, and we will gladly answer your questions on Astral Salt Chlorinators.

Installation

Need installation? Call us and arrange the installation of Astral EQ Chlorinators in most areas.

Specifications

Model No.	EQ18	EQ25	EQ35	EQ45
Pool Coverage
Chlorine output/hour	18 gms/hr	25 gms/hr	35 gms/hr	45 gms/hr
Pool volume (temperate climate)	50,000L	96,000L	130,000L	170,000L
Pool volume (tropical climate)	40,000L	60,000L	80,000L	105,000L
Salt levels	3000 to 8000 ppm	3000 to 8000 ppm	3000 to 8000 ppm	3000 to 8000 ppm
Recommended salt levels	4000 ppm	4000 ppm	4000 ppm	4000 ppm
Max filter pump current draw	8.5 amps	8.5 amps	8.5 amps	8.5 amps
Max acid dosing in auto mode	400ml/hr	400ml/hr	400ml/hr	400ml/hr
Max acid dosing in manual mode	900ml/hr	900ml/hr	900ml/hr	900ml/hr
Programming
Clock timer settings	4 timers + 2 light timers	4 timers + 2 light timers	4 timers + 2 light timers	4 timers + 2 light timers

Manual

Viron EQ Bluetooth Manual

Viron EQ Manual

Brochure

Viron EQ Brochure

Warranty

Your Viron eQuilibrium Chlorinator is covered by 5 year warranty on the cell, 5 year pro-rata warranty on the controller and 12 month warranty on the sensors. For more information go to astralpool.com.au

Videos

Viron eQuilibrium with Bluetooth

Install Menu Part 1

Install Menu Part 2

Setting pH & Chlorine Levels

Setting the Clock



Probe & RJ12 Installation

Setting Timers for Ai Mode



Statistics Feature

Mixing Cells & Dosing Point

Viron eQuilibrium Chlorinator Videos
