Spa Electrics LVT 50 Dual Output Pool Light Transformer – 12V 50W (LV50-12 DUAL)

Spa Electrics LVT 50 Dual Output Pool Light Transformer – 12V 50W

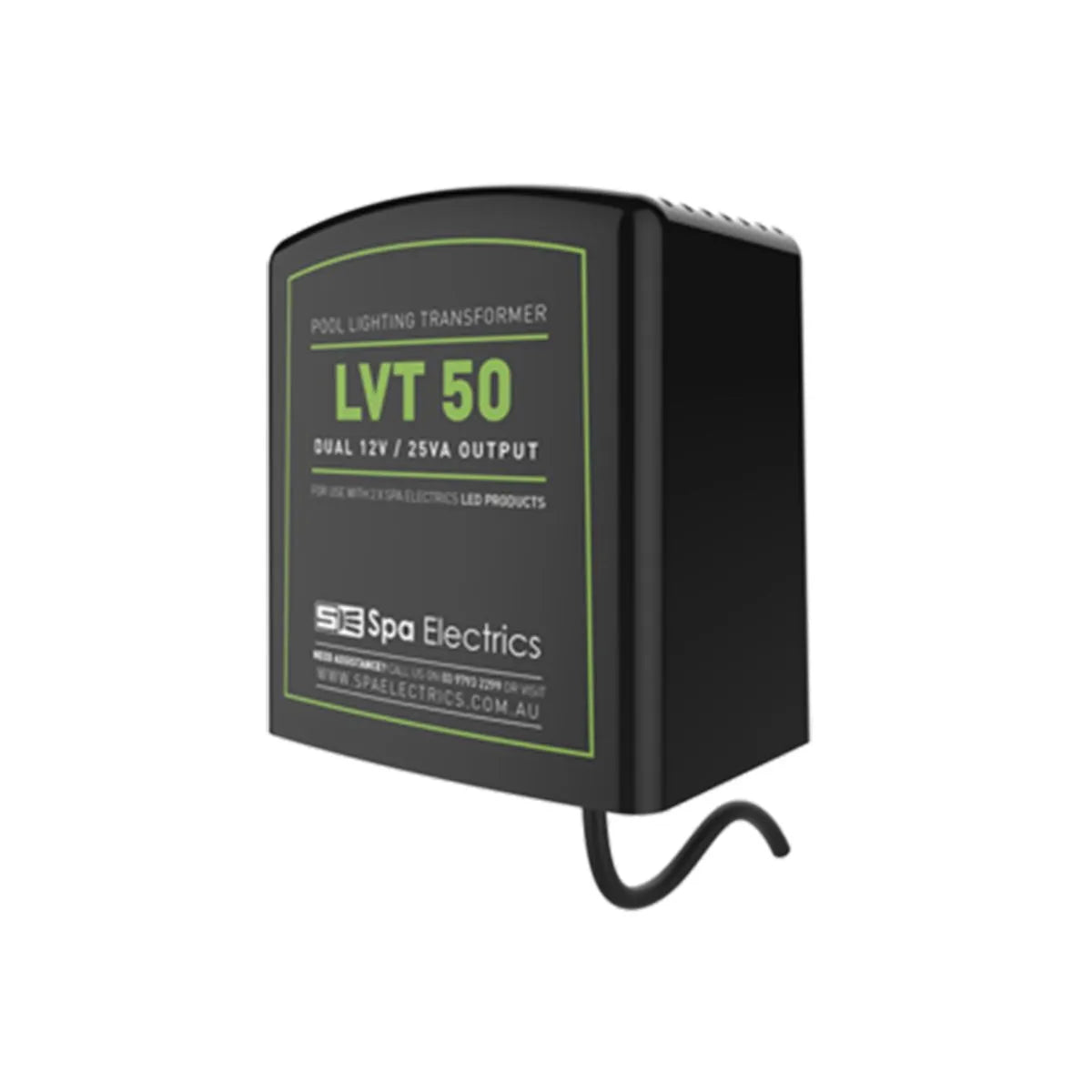

The Spa Electrics LVT 50 is a dual output 12V AC pool lighting transformer designed specifically for use with Spa Electrics LED pool lights. It provides two independent 25VA outputs — one per light — allowing you to power two Spa Electrics LED lights from a single transformer.

Built to Australian Standards with a long-life Toroidal coil, the LVT 50 plugs directly into a standard GPO (no hardwiring required) and includes automatic thermal overload protection and replaceable fuses for added safety and reliability.

Key Features

• Dual output — powers 2 × Spa Electrics LED pool lights
• 12V AC output, 50W total (2 × 25VA)
• Long-life Toroidal coil for clean, reliable power
• Plug and play — standard Australian GPO connection (no hardwiring)
• Resettable automatic thermal overload protection

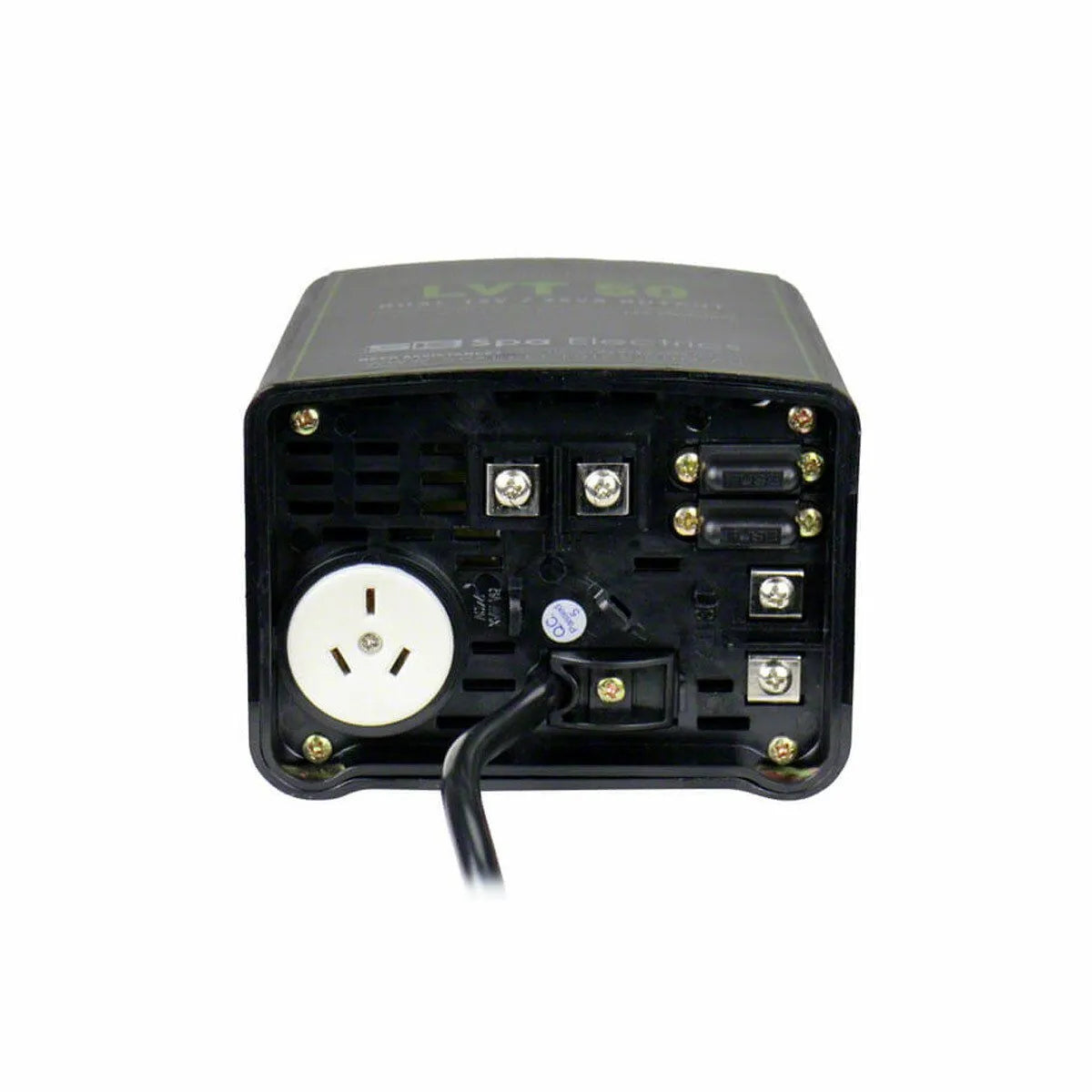

• Replaceable 2 × 3 amp (3AG) fuses
• IP23 protection rating — suitable for outdoor installation
• Meets Australian Standards
• 1-year warranty

Specifications

Frequently Asked Questions

How many pool lights does the LVT 50 power?

The LVT 50 has two independent 25VA outputs and is designed to power exactly 2 × Spa Electrics LED pool lights. If you need to power a single light, see the Spa Electrics single output transformer range.

Does this transformer need to be hardwired?

No — the LVT 50 plugs directly into a standard Australian GPO (power point). No hardwiring is required, making installation straightforward. The transformer must still be installed in a weatherproof location by a licensed electrician.

Is this compatible with all Spa Electrics LED lights?

The LVT 50 is designed for use with Spa Electrics LED pool lights. Always confirm compatibility with your specific Spa Electrics light model before purchasing. If unsure, contact us and we’ll confirm the correct transformer for your lights.

What does IP23 mean?

IP23 means the transformer is protected against solid objects greater than 12.5mm and against water spray up to 60° from vertical. It is suitable for outdoor installation in a sheltered location but should not be exposed to direct rain or submersion.

What happens if the transformer overloads?

The LVT 50 features automatic resettable thermal overload protection — if the transformer overheats, it will shut down automatically and reset once it cools. It also has two replaceable 3AG fuses for additional circuit protection.
