PAL Lighting Powerite P2 Pool Light Transformer – Dual 12V, 2 x 25VA

PAL Lighting Powerite P2 Dual Output Pool Light Transformer

The PAL Lighting Powerite P2 is a plug-in low-voltage pool light transformer with two separate 12V outputs, each rated at 25VA. It is designed for compatible pool lighting systems requiring this output configuration.

When replacing a pool light transformer, matching the output voltage is only the first step. The P2 uses separate windings for its two outputs, so check your lighting system’s load requirements, connections and transformer specifications before ordering.

Key features

• Dual 12V outputs: two separate low-voltage windings.
• 25VA per output: each winding has its own 25VA rating.
• Plug-in design: supplied with an attached power lead and Australian plug.
• IP54-rated protection: as marked on the transformer label.
• Identifiable replacement: Powerite model and part number P2.

Technical specifications

• Brand: PAL Lighting
• Model: Powerite P2
• Part number: P2
• Input voltage: 230–240V AC
• Input frequency: 50Hz
• Output voltage: 2 x 12V AC, separate windings
• Rated output power: 2 x 25VA, separate windings
• Protection rating: IP54
• Connection style: Plug-in
• Application: Compatible low-voltage pool lighting systems

Compatibility and installation

Confirm that your pool lights require a 12V AC transformer and that the load connected to each output is within its 25VA rating. Check the light manufacturer’s requirements and connection arrangement. Do not assume compatibility with every 12V pool light or combine the outputs without manufacturer guidance.

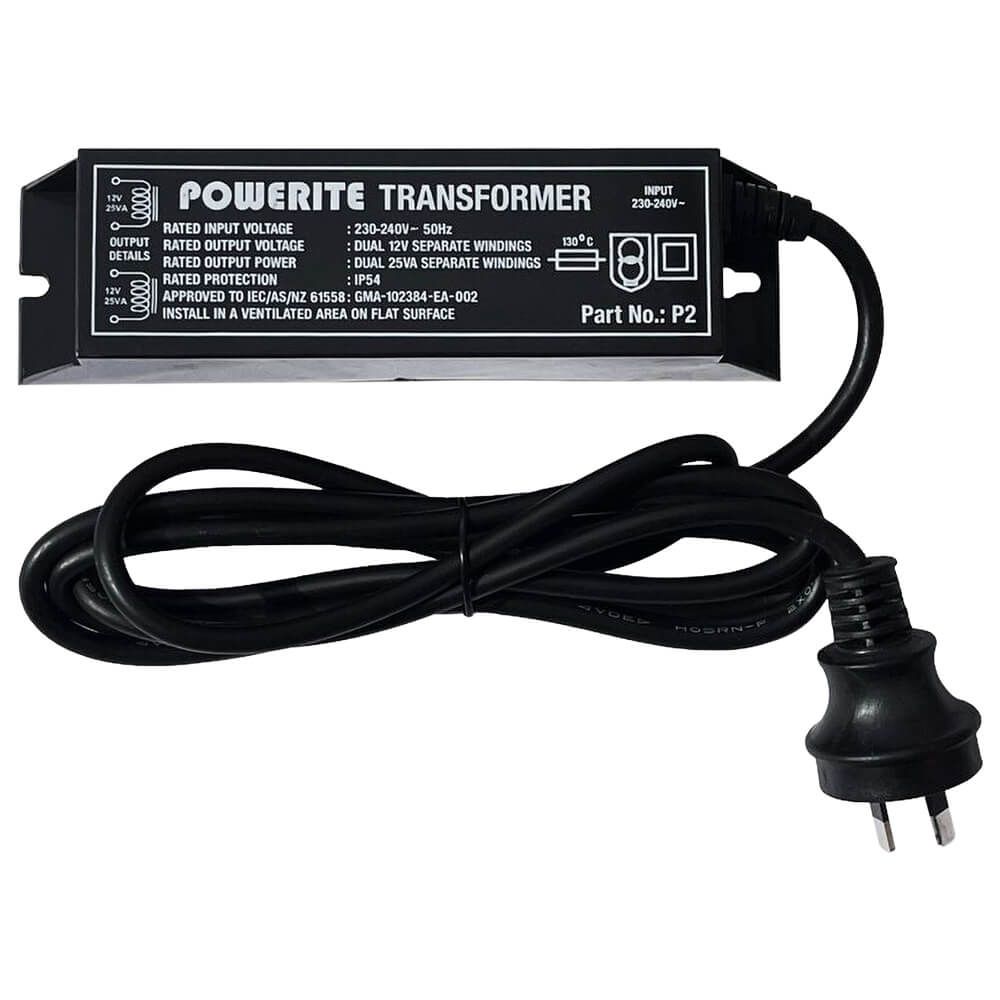

The transformer label specifies installation in a ventilated area on a flat surface. Follow the manufacturer’s installation instructions.

Frequently asked questions

What is the PAL Powerite P2 used for?

The Powerite P2 supplies low-voltage power to compatible pool lighting systems using two separate 12V AC outputs.

Is the 25VA rating per output or in total?

The label specifies dual 25VA separate windings. Each of the two 12V outputs is rated at 25VA.

Does the Powerite P2 provide AC or DC output?

The P2 provides 12V AC transformer outputs. Check that your pool lights require AC rather than a DC power supply before ordering.

Can it run two pool lights?

It has two outputs, but the number of lights it can power depends on each light’s requirements, load and connection arrangement. Each output must remain within its 25VA rating.

What is the replacement part number?

The part number printed on the transformer label is P2.

Does this listing include pool lights?

No. This listing is for the Powerite P2 transformer, not a pool light.
