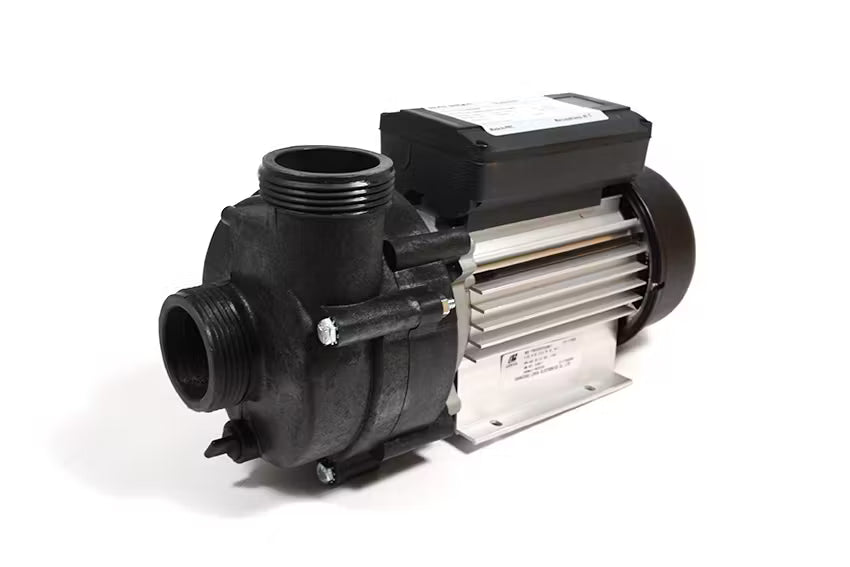

Balboa Eco Spa Circulation Pump 0.25HP – Ultima Circ Pump

Keep your spa water clean, heated, and efficiently circulated with the Balboa Eco Spa Circulation Pump. This 0.25HP low-energy circ pump is engineered for continuous duty operation — quietly running 24/7 to maintain water quality, distribute heat evenly, and extend the life of your filtration system, all while drawing minimal power.

A direct replacement for worn or failed circ pumps that cause cold spots, poor filtration, or heater lockout errors. Note: this pump is 25mm longer than previous versions and replaces both the 1070017 and 1030017 models.

Key Features

• 0.25HP low-power circulation pump – designed for continuous 24/7 operation
• 1.3m lead with AMP plug – ready for direct connection
• Unions not included – reuse existing unions or purchase separately
• 25mm longer than previous versions – verify clearance before installing
• Replaces Balboa part numbers 1070017 and 1030017
• Quiet operation – minimal noise for poolside and indoor spa environments
• Compatible with Balboa control systems and a wide range of spa brands
• 1 Year Warranty

Compatible Part Numbers

• 1031030 (this unit)
• 1030017 (superseded – replaced by this unit)
• 1070017 (superseded – replaced by this unit)
• 10700107

Electrical Specifications

• Speed: Single
• Voltage: 220–240V
• Run Current: 0.8A
• Input Power: 0.25HP
• Output Power: 60W
• RPM: 1400

Dimensions

• Length: 350mm (25mm longer than older 1070017/1030017 models)
• Width: 160mm
• Height: 190mm
• Weight: 3.0kg

Warranty

• 1 Year

Note: Always verify your existing part number and available installation clearance before ordering. This pump is 25mm longer than older versions – check spa cabinet space before installing.
