The Aqua-Quip EvoMAX Series LED Pool Light represents Aqua-Quip’s top-tier niche lighting option, engineered for optimal brightness with a streamlined, low-profile form. Its lens is 45% larger than the Evo2 model, providing superior light diffusion, wider beam spread, and side-lighting capabilities, ideal for lighting concrete pools, spas, and water features. This advanced LED system integrates with Aqua-Quip’s Quick Connect Plug Kit, making installation and maintenance straightforward. The clear lens integrates smoothly with your pool’s interior, and an optional stainless steel trim ring adds a refined finish. Available in fixed White and Blue or Multi-Colour Pro RGB+W, it delivers extensive color range and dynamic pre-set effects. Operating at extra-low voltage, EvoMAX combines safety, energy efficiency, and high performance.
Â
Engineered with advanced thermal management and fault protection systems, EvoMAX guarantees reliability and long-lasting operation. It is the ideal choice for modern pools seeking a combination of powerful illumination and elegant design.
Benefits:
- Maximum Illumination:Â Larger lens surface provides up to 45% more light diffusion than Evo2 for superior brightness and beam spread.
- Sleek Aesthetic:Â Maintains a flush profile, protruding just 9mm from the pool wall, ensuring a modern, seamless look.
- Customizable Lighting Options: Available in fixed colours or Multi-Colour Pro RGB+W with Aqua-Quip’s Colour Selection Palette, offering limitless colours and pre-programmed InstaTouch mode for dynamic visual effects.
- Energy Efficiency:Â Advanced LED technology minimizes energy consumption while delivering maximum brightness.
- Reliable and Durable:Â Features thermal management and fault protection systems for consistent performance and longevity.
- Easy Installation:Â Quick Connect Plug Kit allows for simple connection and maintenance.

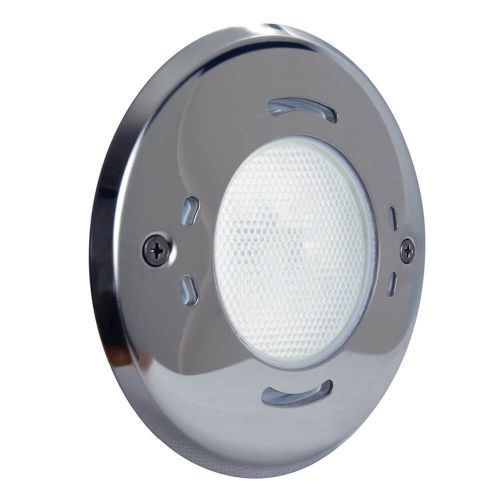

- Enhanced Elegance:Â Optional stainless steel trim ring adds a sophisticated touch (sold separately).
- Australian Made:Â Designed and manufactured to meet stringent Australian standards.
Features:
- Innovative Lens Design:Â Provides superior light diffusion, side-lighting effects, and eliminates hotspots.
- Colour Selection Palette:Â Exclusive to the Multi-Colour PRO RGB+W option, providing an expansive range of colour possibilities and pre-set lighting effects.
- High Light Output:Â Up to 985 lumens (White) for bright and even illumination.

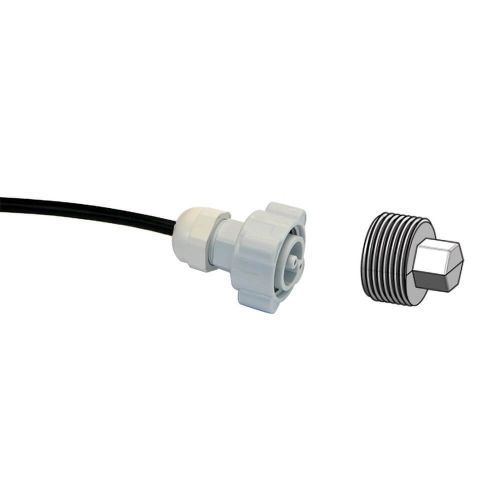

- Quick Connect Plug Kit:Â Factory-fitted for easy installation and cable detachment.
- Durable Construction:Â IPX8-rated for underwater operation up to 2m depth.
- Energy Efficient:Â Operates on extra-low voltage (12V AC) for safety and cost savings.
- Versatile Application:Â Ideal for concrete pools, spas, water features, fountains, ponds, and catch tanks, adding vibrant illumination and ambiance to various aquatic environments.
- Replaceable accessories
LED Colour Guide:
Multi-Colour pool lights can be operated using Aqua-Quip’s InstaTouch Smart Lighting Controller, a wall switch, or a variety of third-party control systems.
| Multi-Colour | Blue | White | Warm White | |
|---|---|---|---|---|
| Power Consumption | 30 VA Max | 25 VA | 25 VA | 25 VA |
| Light Colour | Program Dependant | 475 nm | >5000K | 3000K |
| Light Output (typical) | Up to 795 lm | 300 lm | 985 lm | 985 lm |
Note: MultiColour Lights Dimmable via InstaTouch Smart Lighting Controller.
Technical Specifications:
| Available Colours | Multi Colour PRO RGB+W |
|---|---|
| Blue | |
| White | |
| Controller Compatibility | Wall Switch or Power Point |
| Aqua-Quip InstaTouch | |
| Astral Connect 10 / Connect Lite / HALO* | |
| Zodiac Jandy AquaLink* | |
| Hayward OmniLogic* | |
| Pentair IntelliTouch, EasyTouch, IntelliCenter* | |
| INSNRG | |
| Aquatek (by Dontek Electronics) | |
| Theralux Active Pool+Manager | |
| Aquamate X | |
| Sunlover Oasis Smart Control System | |
| SplashMe Automation Controller | |
| Home Automation Systems (C-Bus etc)* | |
| Installation Types | New Concrete Pools, Spas, Water Features, Catch Tanks |
| Nominal Supply Voltage | 12V AC 50/60 Hz |
| Voltage Tolerance | +20%,-20% |
| Protection Rating | IPX8 up to 2.0m depth |
| Temperature Range | 0°C ~ +40°C pool water temperature |
| Power Consumption (Fixed Colour LEDs) |
White, blue and green = 25 VA |
| Power Consumption (Multi-Colour LEDs) |
Spectrum III Multi Colour = 30 VA maximum |
| Cable Gauge | 0.75mm², 2 core |
| Detachable Cable | Yes, Plug Kit is factory fitted to supply cable |
| Fault Protection | Thermal cutout. Voltage transient clamping |
| Warranty | 12 Month Manufacturers Warranty |
(*) Important: To ensure proper operation, the lights must be programmed to match the specific controller's color-changing protocol. If you're unsure about compatibility or need assistance, click here for help choosing the best suitable lights for your pool.
In The Box:

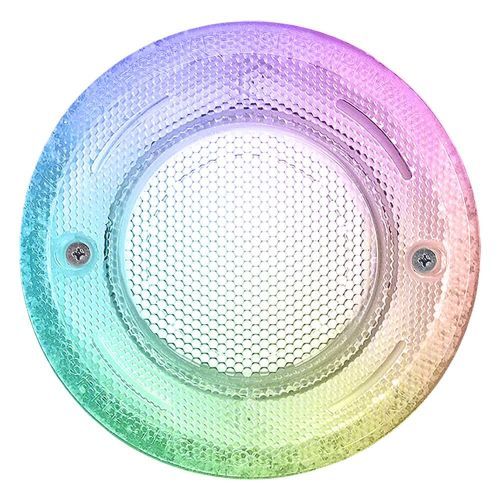

- 2 x EvoMAX Multi-Colour PRO RGB+W LED Light
- 2 x Concrete Mounting Kit:

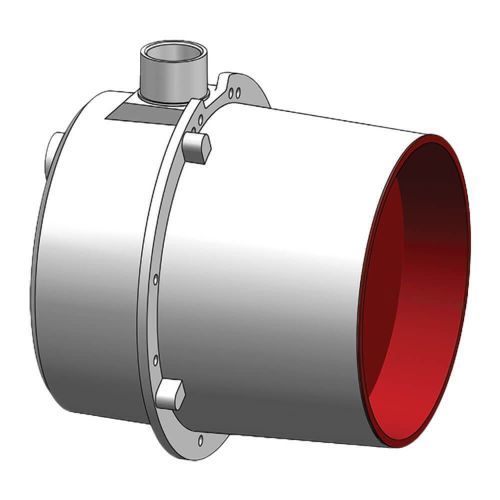

- Housing
- Protective Cap for Housing (Red)

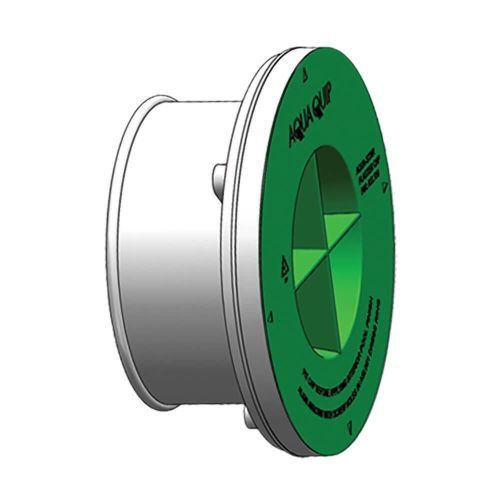

- Adjustable Dress Ring*
- Plaster Cap for Dress Ring (Green)
- Screw Kit Standard (Ka40x20)

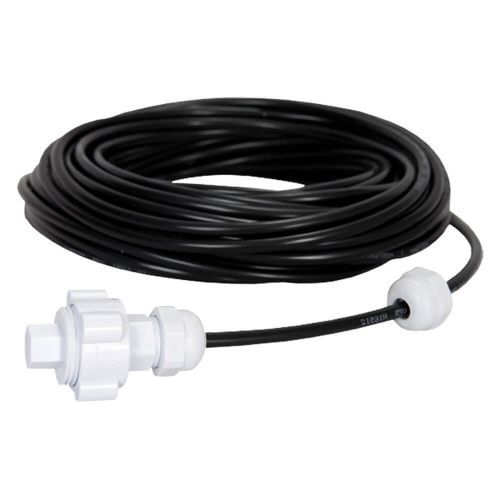

- 2 x 20M Cable with Quick Connect Plug Kit

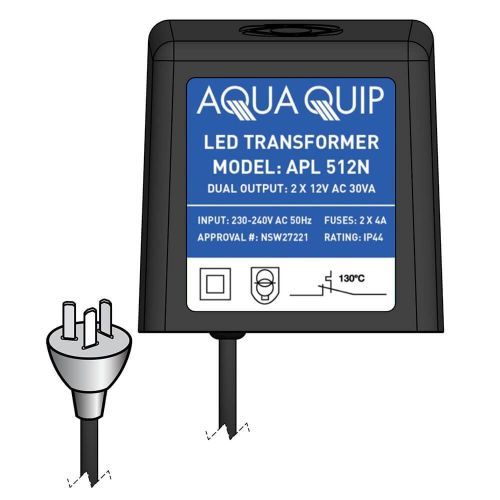

- 1 x Dual Output (2x 12 Volt, 30VA) Plug-In Transformer
- Stainless Steel Trim Ring Kit - (optional)
- Screw Kit (Ka40x25) – for Stainless Steel Trim Ring - (optional)
(*) Dress Ring available in White, Grey or Black.

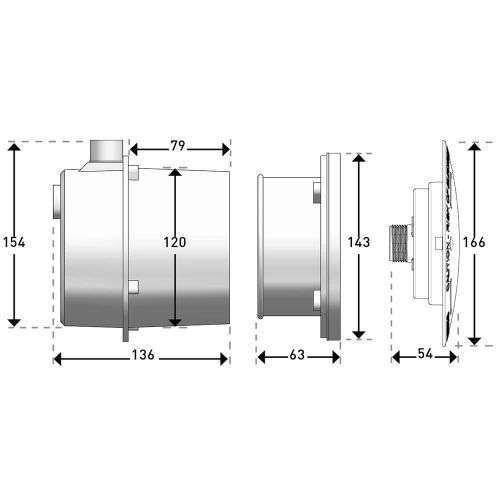

Dimensions:
