- Home
- Light Parts
- Aqua-Quip EvoCR Series - LED Colour Niche Pool Light w/ Concrete Mounting Kit, 20M/30M Cable and Plug Kit Aqua-Quip EvoCR Series - LED Colour Niche Pool Light w/ Concrete Mounting Kit, 20M/30M Cable and Plug Kit
- Description
- Specifications
- Documentation
- Reviews

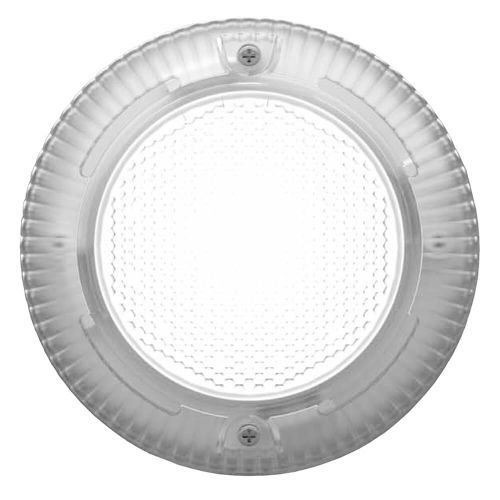

EvoCR LED Pool Lights for Existing Concrete Pools
The EvoCR Series LED Light has been developed for renovators of concrete pools.

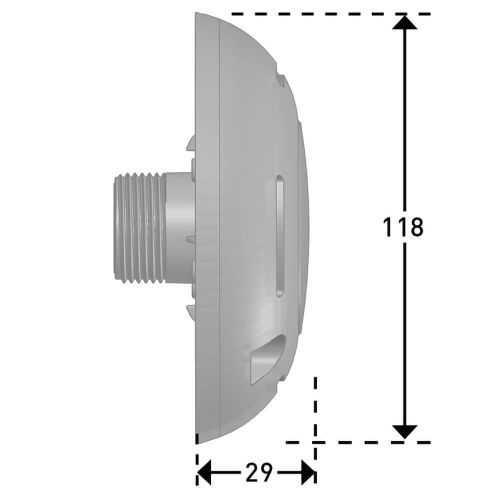

The Housing is supplied with a 20mm socket for connection to 20mm rigid PVC conduit. The housing has a narrow diameter of just 60mm and is inserted and sealed into a hole that is core-drilled through the pool wall.

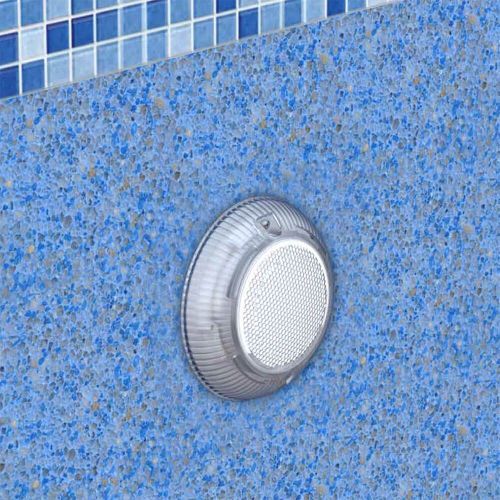

Pool light mounts into the existing Aqua-Star housing.

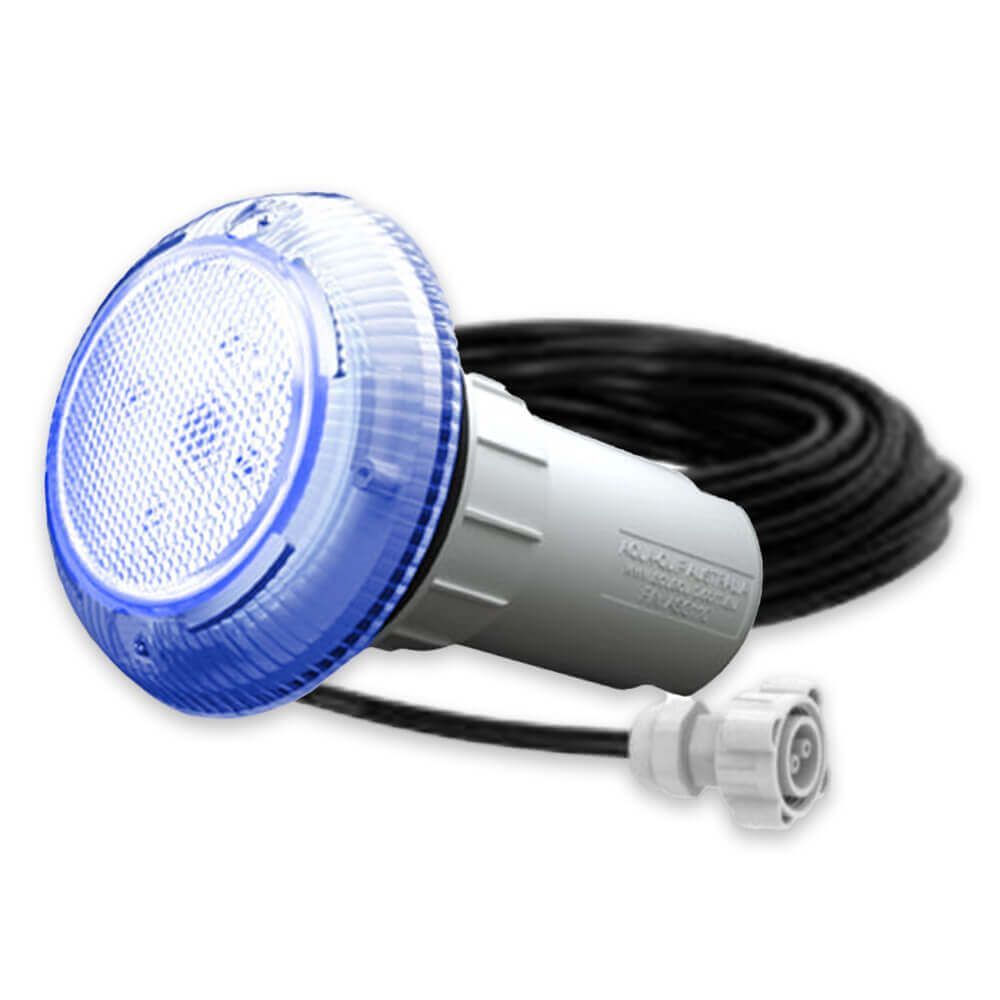

The EvoCR LED Retro Fit Light is supplied with a factory-sealed light and a Quick Connect Plug Kit.
The plug kit connects to the existing cable and is then connected to the rear of the light by tightening the supplied lock nut.
Specifications
Operated by extremely safe extra low voltage supply (12V AC), low power consumption, long life-span, easy installation and operation.
| Nominal Supply Voltage: | 12V AC 50/60 Hz |
| Voltage Tolerance: | +20%, -20% |
| Protection Rating: | IPX8 (to 2.0m depth) |
| Temperature Range: | 0°C ~ +40°C water temperature |
| Power Consumption: | White, blue and green = 8 VA |
| Power Consumption: | Spectrum III Multi Colour = 16 VA maximum |
| Light Output (typical): | White-550 lumens, blue-180 lumens, green-500 Lumens |
| Fault Protection: | Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
Documentation
Operated by extremely safe extra low voltage supply (12V AC), low power consumption, long life-span, easy installation and operation.
| Nominal Supply Voltage: | 12V AC 50/60 Hz |
| Voltage Tolerance: | +20%, -20% |
| Protection Rating: | IPX8 (to 2.0m depth) |
| Temperature Range: | 0°C ~ +40°C water temperature |
| Power Consumption: | White, blue and green = 8 VA |
| Power Consumption: | Spectrum III Multi Colour = 16 VA maximum |
| Light Output (typical): | White-550 lumens, blue-180 lumens, green-500 Lumens |
| Fault Protection: | Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
