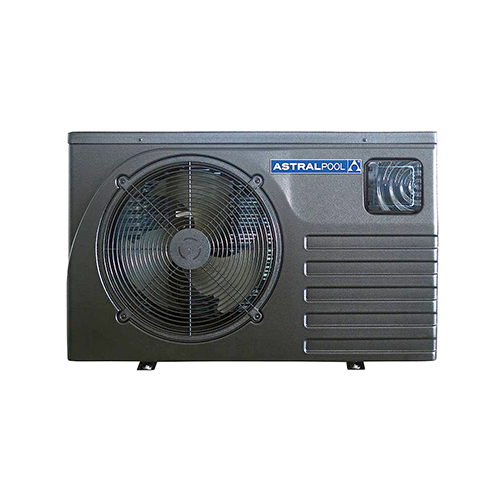

Astral ECO Inverter Heat Pump
The Astral Pool Eco Inverter range of Heat Pumps now includes Inverter technology. Inverter technology allows the swimming pool heat pump to be more efficient by reach an extremely high COP compared with standard heat pumps
Inverter technology reduces the unit's speed as it reaches the desired temperature, saving energy, and enables you to enjoy swimming quicker and at a constant temperature.
The ECO Inverter Heat Pump range uses R32 Gas Refrigerant, which offers higher efficiency and longer pipe runs and requires less refrigerant volume per kW. This means quicker heating times and less energy used to heat your pool, reduce electricity consumption by 10%, and lower environmental impact.
Astral Heat Pumps must be installed outdoors with minimum clearances of 500 mm on sides and back and 1000 mm in front of the unit to ensure efficient operation. An electrical isolation switch needs to be installed nearby to allow servicing.Â
Features
- Environmentally friendly
- Whisper quiet
- Super Efficient
- Faster heat up times
- Optional WiFi Module add-on for use with the HeatPumpGo app
- In-built timer
- Titanium Heat Exchangers
Specifications
| Model No. | ECO iHP70 | ECO iHP90 | ECO iHP120 |
|---|---|---|---|
| Programming | |||
| AquaTemp | Yes | Yes | Yes |
| Viron connect compatible | No | No | No |
| Wifi module included | No | No | No |
| Equipment | |||
| Product number | 78566 | 78567 | 78568 |
| Water pressure drop (max) Kpa | 2 | 3 | 4 |
| Water flow volume | 40.00 (L/m) | 53.33 (L/m) | 68.33 (L/m) |
| Water connection | 40mm | 40mm | 40mm |
| Sound pressure 1M Db(A) | 38-50 | 39-51 | 42-53 |
| Power | 10A Cable with plug | 10A Cable with plug | 15A Cable with plug |
| Voltage/Phases/Frequency | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Running current | 0.5-0.6 Amp | 0.5-6.0 Amp | 0.7-8.3 Amp |
| Refridgerant type | R32 | R32 | R32 |
| Efficiency (COP) | 10.0-4.5 | 10.0-4.4 | 10.0-4.6 |
| Heating capacity | 1.4-6.8 kW | 1.9-8 kW | 2.4-10.9 kW |
| Dimensions (L x W x H) | 1003x403x603 mm | 1003x403x603 mm | 1003x403x603 mm |
More information on these Heat Pumps can be found on The Astral Pool Heat Pump Page.
Manual
Astral Pool Eco Inverter Manual
Brochure
Sizing Guide
Click On download Calculator to calculate the appropriate heat pump for your pool. The Calculator opens an excel sheet where pool location and size details can be entered. The calculator will provide running costs and advise which model is best for you.Â
